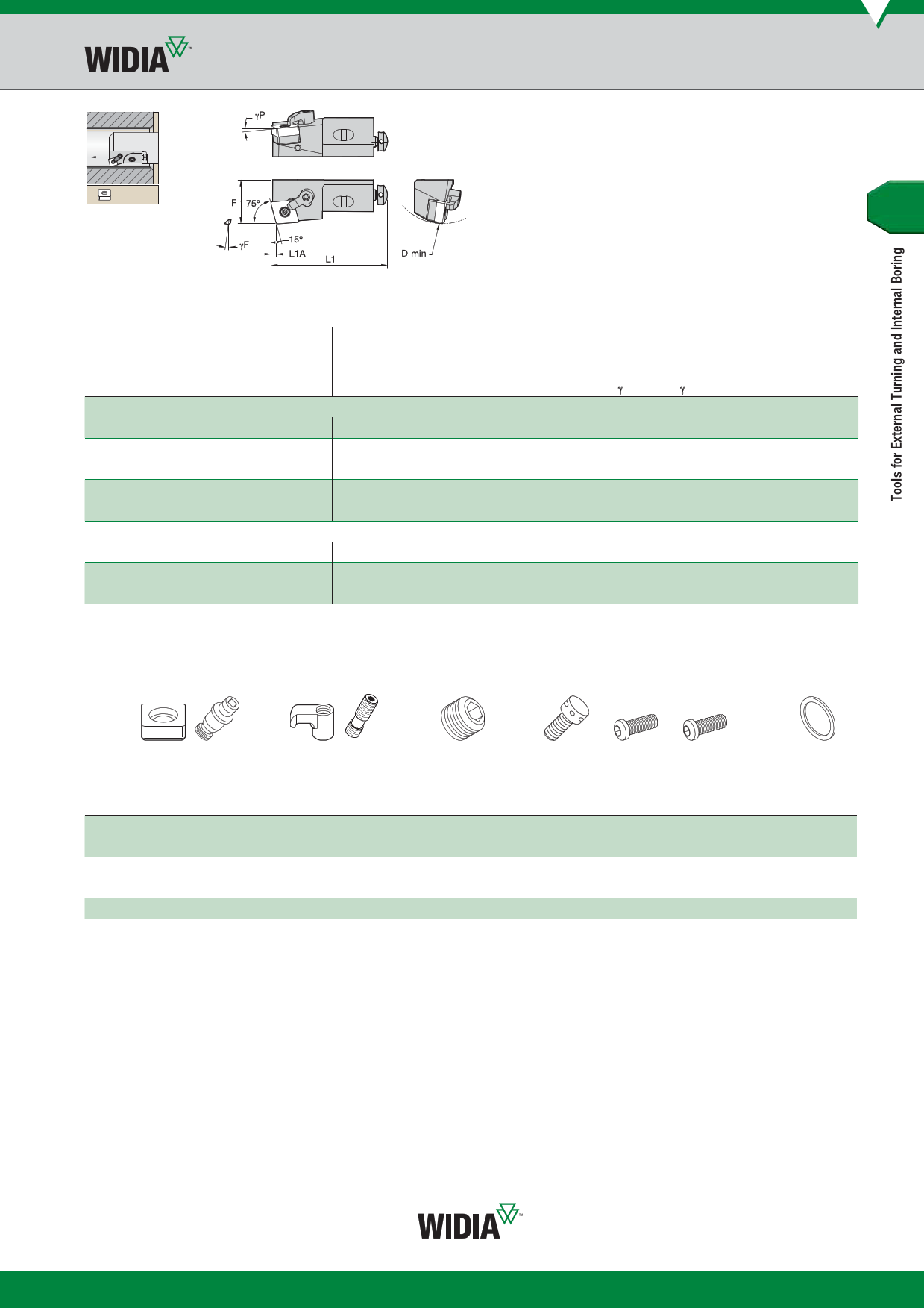

M-Style Clamping Cartridges for Negative Inserts
See pages B68–B80
for inserts.
MSKN 75°
order number
catalogue number
D min
F
L1 L1A aF° aP°
gage
insert
right hand
3870352
MSKNR10CA09
40,0 14,0 50 2,2 -9.0 -5.0 SN..090308/SN..322
3870351
3870350
MSKNR12CA12
MSKNR16CA12
50,0 20,0 55 3,0 -9.0 -5.0 SN..120408/SN..432
60,0 25,0 63 3,0 -9.0 -5.0 SN..120408/SN..432
3870349
3870348
MSKNR20CA15
MSKNR25CA19
70,0 25,0 70 3,7 -9.0 -5.0 SN..150612/SN..543
100,0 32,0 100 4,6 -9.0 -5.0 SN..190612/SN..543
left hand
3870356
3870354
MSKNL10CA09
MSKNL16CA12
40,0 14,0 50 2,2 -9.0 -5.0 SN..090308/SN..322
60,0 25,0 63 3,0 -9.0 -5.0 SN..120408/SN..432
3870353
MSKNL20CA15
70,0 25,0 70 3,7 -9.0 -5.0 SN..150612/SN..543
Spare Parts
D min shim
radial
axial
lock
clamp
adjusting
adjusting
pin hex clamp screw hex screw hex screw
40 — KLM33 2 mm CKM36 STCM38 2 mm KUAM28 2 mm KUAM30
50 — KLM43 2 mm CKM34 STCM38 2 mm KUAM22 2 mm KUAM31
60 ISSN432 KLM46S 2.5 mm CKM34 STCM9 2.5 mm KUAM25 2.5 mm KUAM32
70 SKSN566K KLM54 2.5 mm CKM37 STCM40 2.5 mm KUAM25 2.5 mm KUAM32
100 ISSN633 KLM68 4 mm CKM35 STCM8 4 mm KUAM27 4 mm KUAM32
mounting
screw
191.405
191.406
191.407
191.407
—
holding
screw
—
—
—
—
MS364
hex washer
CSWM 060 050
4 mm CSWM 060 050
5 mm CSWM 080 050
5 mm CSWM 080 050
8 mm CSWM 100 080
