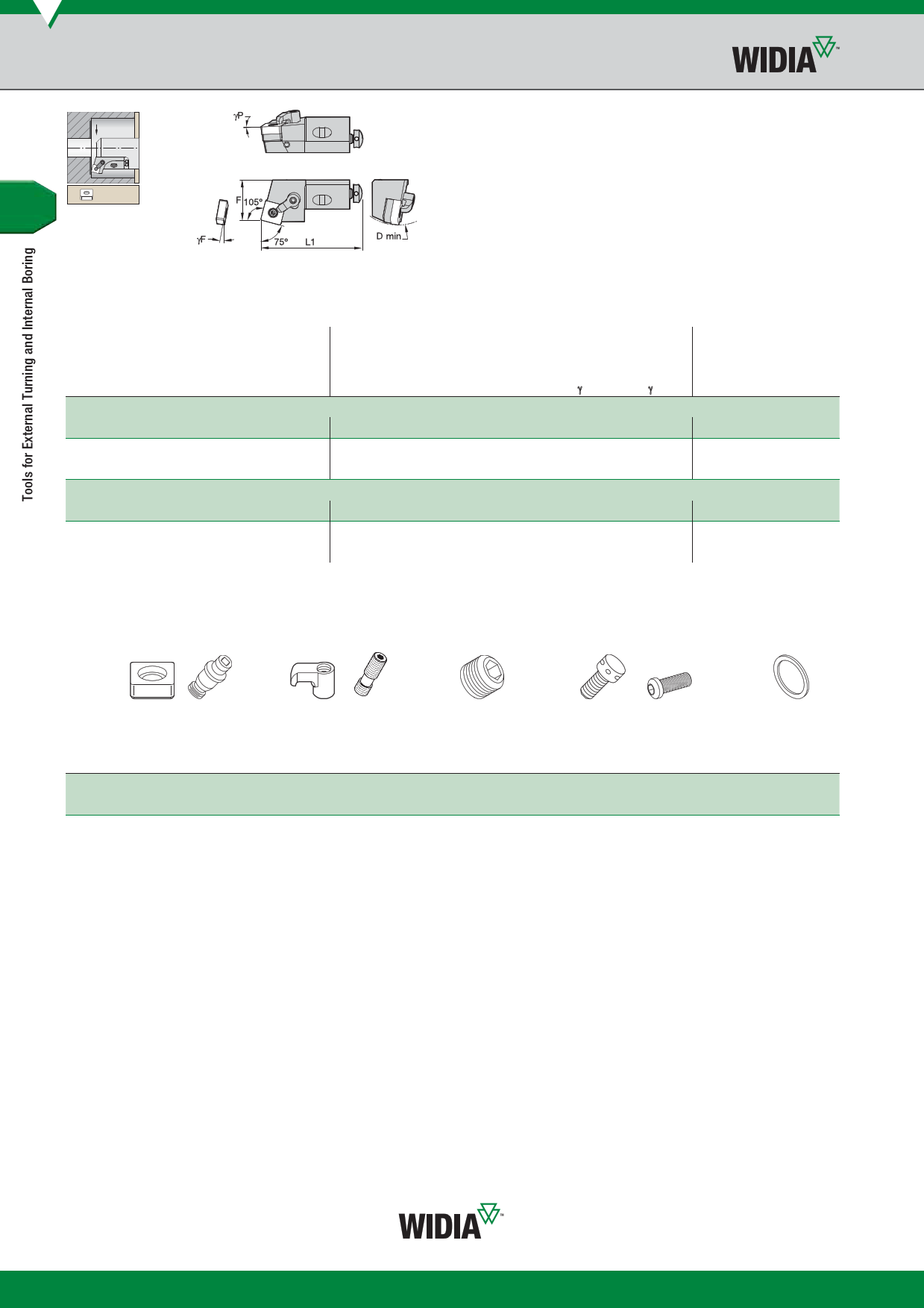

M-Style Clamping Cartridges for Negative Inserts
See pages B68–B80
for inserts.
MSRN 75°
order number
catalogue number
D min
F
L1 aF° aP°
gage
insert
right hand
3870344
MSRNR10CA09
40,0 14,0 50 -9.0 -5.0 SN..090308/SN..322
3870343
MSRNR12CA12
50,0 20,0 55 -9.0 -5.0 SN..120408/SN..432
3870341
MSRNR20CA15
70,0 25,0 70 -9.0 -5.0 SN..150612/SN..543
left hand
3870347
MSRNL12CA12
50,0 20,0 55 -9.0 -5.0 SN..120408/SN..432
3870346
MSRNL16CA12
60,0 25,0 63 -9.0 -5.0 SN..120408/SN..432
3870345
MSRNL20CA15
70,0 25,0 70 -9.0 -5.0 SN..150612/SN..543
Spare Parts
D min
40
50
60
70
shim
lock
pin hex
— KLM33 2 mm
— KLM43 2 mm
ISSN432 KLM46S 2.5 mm
SKSN566K KLM54 2.5 mm
clamp
CKM36
CKM34
CKM34
CKM37
clamp
screw
hex
STCM38 2 mm
STCM38 2 mm
STCM9 2.5 mm
STCM40 2.5 mm
radial
adjusting
screw
KUAM28
KUAM22
KUAM25
KUAM25
hex
2 mm
2 mm
2.5 mm
2.5 mm
axial
adjusting
screw
KUAM30
KUAM31
KUAM32
KUAM32
mounting
screw hex
191.405 4 mm
191.406 4 mm
191.407 5 mm
191.407 5 mm
washer
CSWM 060 050
CSWM 060 050
CSWM 080 050
CSWM 080 050
C98
