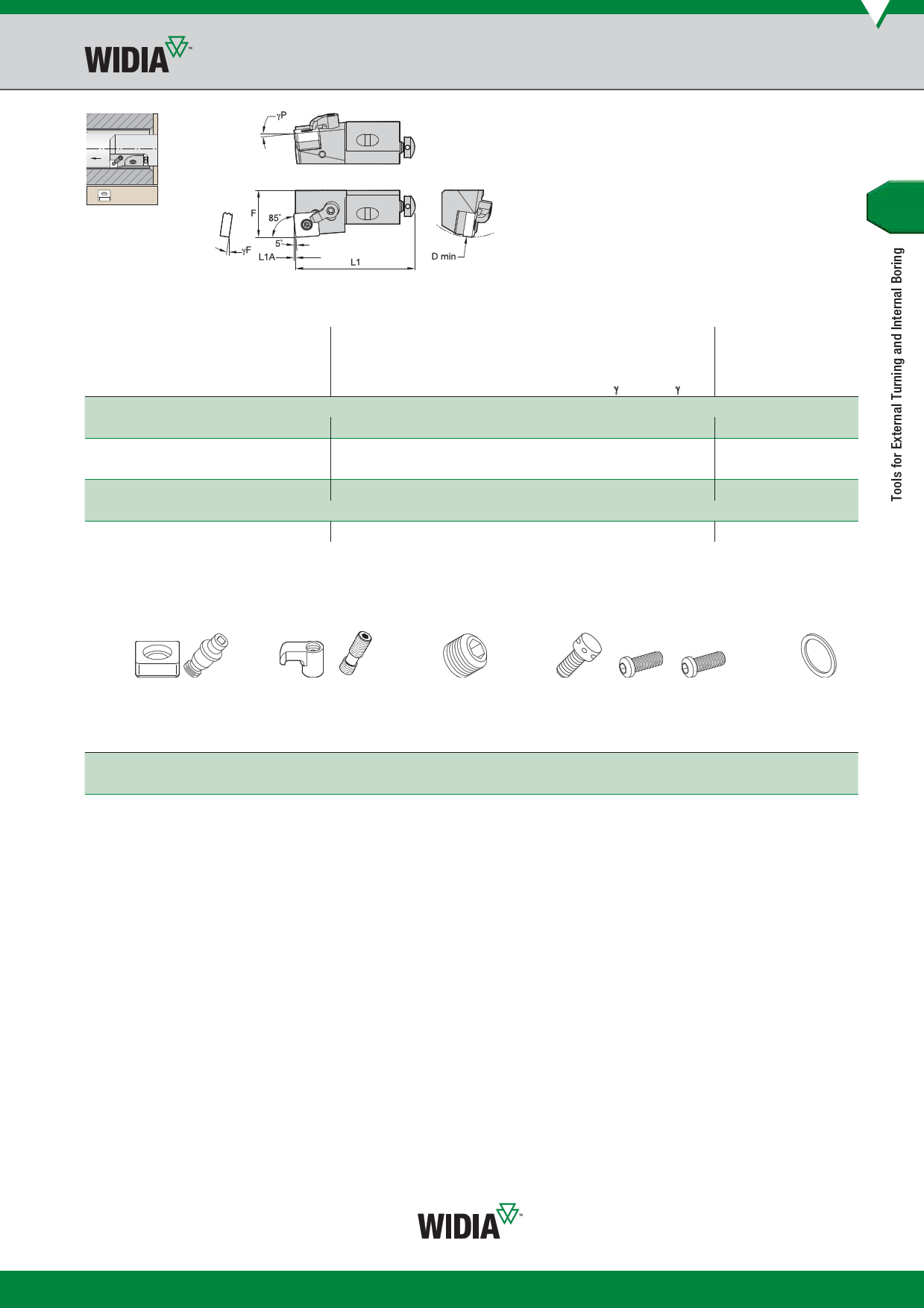

M-Style Clamping Cartridges for Negative Inserts
See pages B68–B80
for inserts.
MSYN 85°
order number
catalogue number
D min
F
L1 L1A aF° aP°
gage
insert
right hand
3870308
MSYNR10CA09
40,0 14,0 50 0,8 -9.0 -5.0 SN..090308/SN..322
3870307
MSYNR12CA12
50,0 20,0 55 1,0 -9.0 -5.0 SN..120408 / SN..432
3870306
MSYNR16CA12
60,0 25,0 63 1,0 -9.0 -5.0 SN..120408 / SN..432
3870305
MSYNR25CA19
100,0 32,0 100 1,5 -9.0 -5.0 SN..190612/SN..643
left hand
3870309
MSYNL10CA09
40,0 14,0 50 0,8 -9.0 -5.0 SN..090308/SN..322
Spare Parts
lock clamp
D min shim pin hex clamp screw hex
40 — KLM33 2 mm CKM36 STCM38 2 mm
50 — KLM43 2 mm CKM34 STCM38 2 mm
60 ISSN432 KLM46S 2.5 mm CKM34 STCM9 2.5 mm
100 ISSN633 KLM68 4 mm CKM35 STCM8 4 mm
radial
adjusting
screw
KUAM28
KUAM22
KUAM25
KUAM27
axial
adjusting
hex screw
2 mm KUAM30
2 mm KUAM31
2.5 mm KUAM32
4 mm KUAM33
mounting
screw
191.405
191.406
191.407
—
holding
screw
—
—
—
MS364
hex washer
4 mm CSWM 060 050
4 mm CSWM 060 050
5 mm CSWM 080 050
8 mm CSWM 100 080
