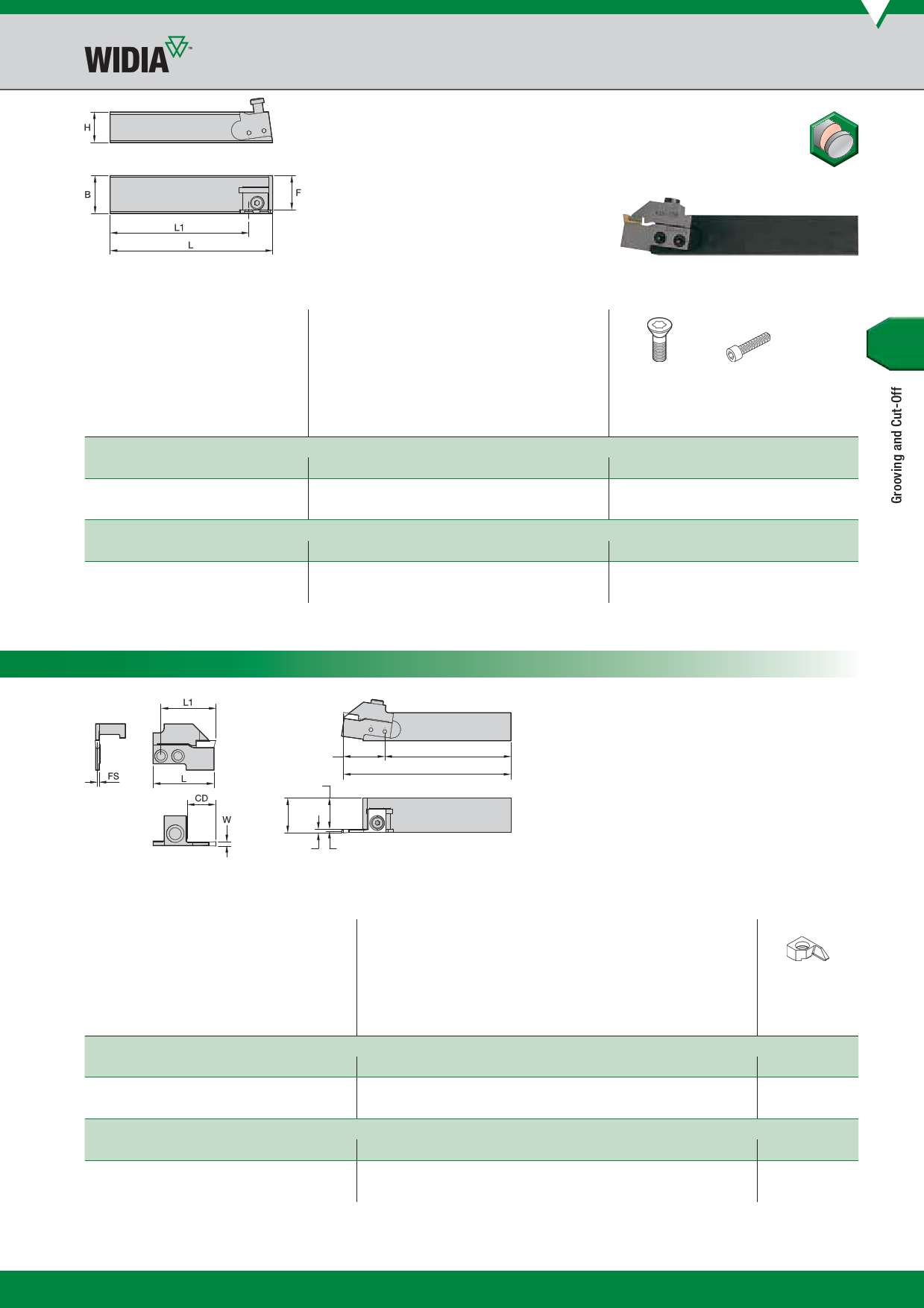

Separator™
Toolholders
Left Hand Tool
25mm and 32mm Shank Toolholders
Right Hand Tool
order number
right hand
3538772
3614344
3538710
left hand
3538773
3538774
3615305
catalogue number
206518
206522
206271
206519
206523
206440
support blade
H B L L1 F
screw
12,00
20,00
25,00
11,53
20,00
24,61
102,77
102,77
131,90
84,68
84,68
112,16
20,55
15,55
21,41
606247
606247
MS1073
12,00
20,00
32,00
11,53
20,00
31,60
102,77
102,77
132,03
84,68
84,68
112,18
20,55
15,55
28,42
606247
606247
MS1073
clamp
screw
—
—
MS1071
—
—
MS1071
clamp
screw
MS1495
MS1495
—
MS1495
MS1495
—
Support Blade Assembly
L1 blade
FS holder
L1 holder
L1 Assy
F Assy
Left Hand Blade and Clamp Shown
W FS blade
L1 Assy = L1 (holder) + L1 (blade)
F Assy = F (holder) + FS (blade) + W/2
25mm and 32mm Shank Blades
order number
catalogue number
W
CD
FS
L
L1
right hand
3563591
331117
2,50 12,70 2,39 36,03 29,60
3539504
331101
3,00 20,64 1,98 43,80 37,63
3539508
331109
4,00 20,64 1,98 43,80 37,63
left hand
3539510
331118
2,50 12,70 2,39 36,03 29,60
3539505
331102
3,00 20,64 1,98 43,80 37,63
3539509
331110
4,00 20,64 1,98 43,80 37,63
NOTE: Clamps do not ship with blades. Order clamps separately.
zakaz@widiahanita.ru
www.widiahanita.ru
clamp
435142
435128
435128
435143
435129
435129
E125
