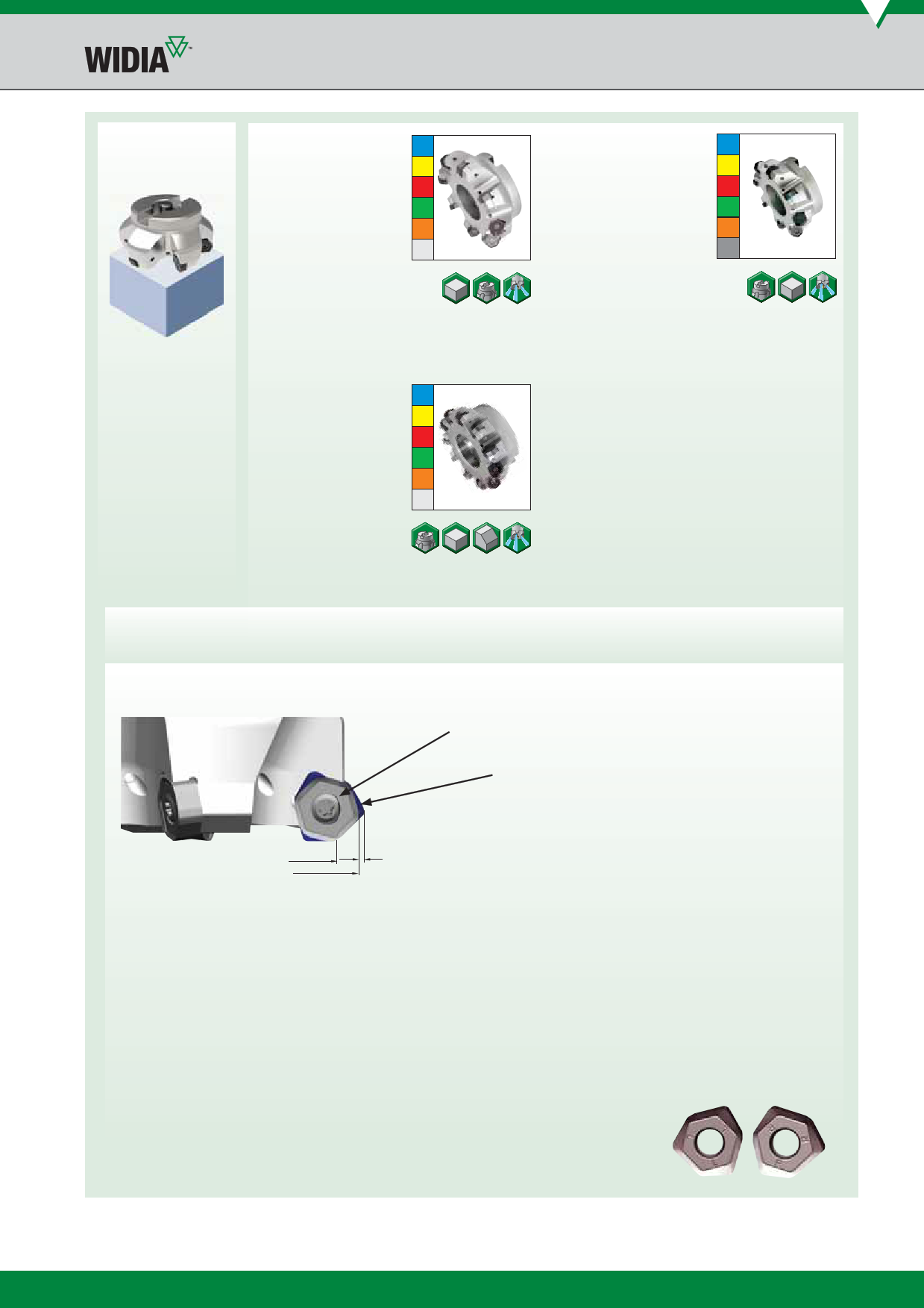

Face Mills
Victory™ M1200 HF 14.5°
Max depth of cut: 2,2mm
Lead angle: 14.5°
Indexes per insert: 12
Diameter: 50–160mm
Pages: H26–H29
P
M
K
N
S
Victory™ M1200 45°
Max depth of cut: 4,5mm
Lead angle: 45°
Indexes per insert: 12
Diameter: 40–315mm
Pages: H30–H37
P
M
K
N
S
H
Victory™ M1200 HD 59°
Max depth of cut: 6mm
Lead angle: 59°
Indexes per insert: 12
Diameter: 50–160mm
Pages: H38–H41
P
M
K
N
S
Easy-to-use wiper insert setup to achieve excellent surface oor nish
Wiper insert overlapping
vs. regular insert
Regular Insert HNGJ09
Wiper Insert XNGJ09
[D1]
[D1 max]
D1 max Wiper = D1 max + 3,00mm
1,50mm
• Wiper inserts only applied with 45° lead angle cutter bodies.
• Easy to use. Regular and wiper inserts are loaded into xed
pockets. No adjustment required.
• Please have D1 max wiper in mind in case of
limited working area.
• Use wiper inserts only in combination with periphery ground
regular inserts HNGJ09.
• Up to cutting diameter D1=100mm load one wiper insert.
• For cutting diameter D1=125mm and above load
two wiper inserts.
• Each wiper insert XNGJ09 can be applied with three
right hand R and three left hand L cutting edges.
