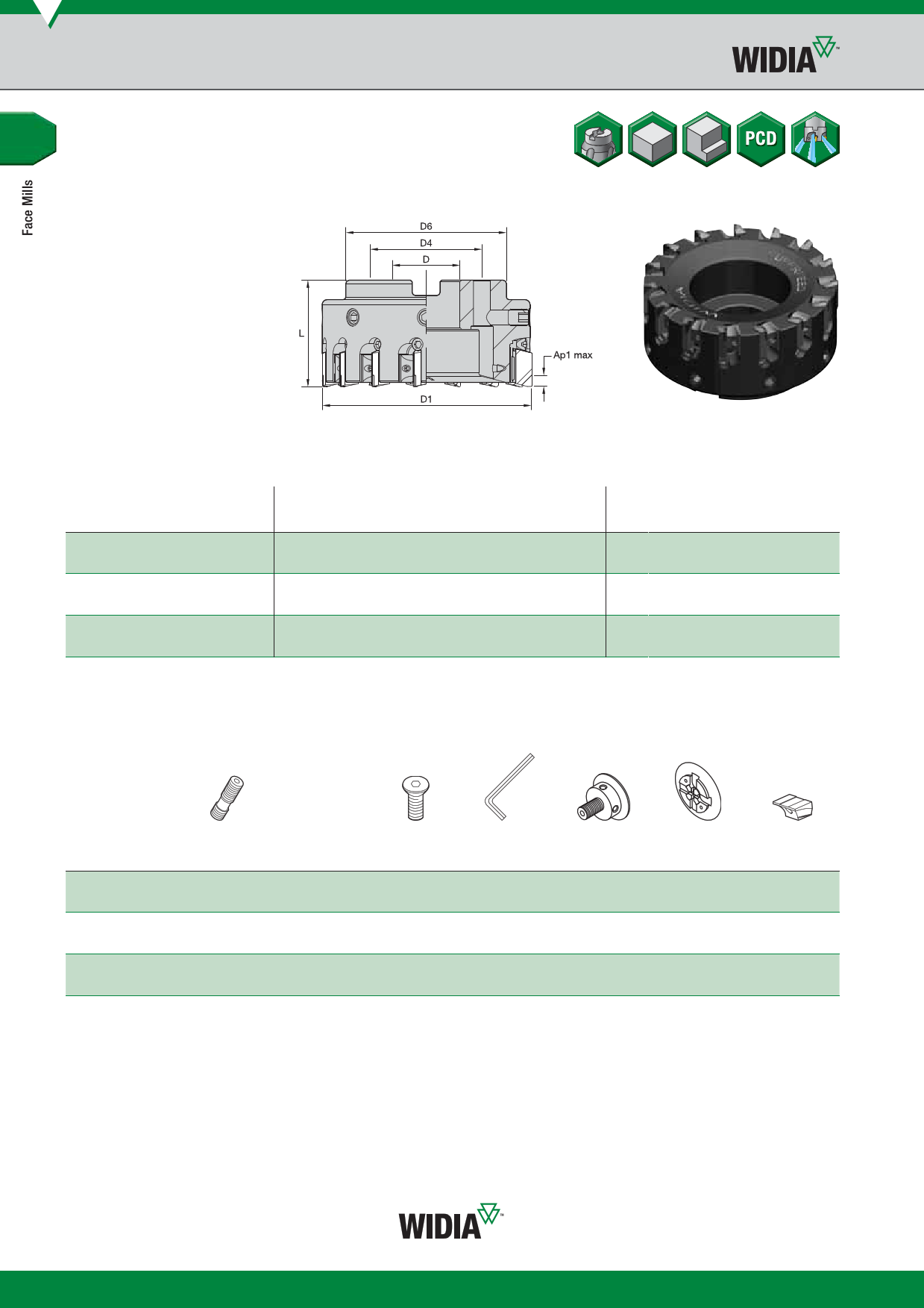

Face Mills • SuperFeed™ Series

Tool Bodies • Face Mills

для размещения заказа - zakaz@widiahanita.ru

• Through coolant capability.

• +/- 3 micron axial adjustment range.

• Balanced design.

• Easy setup in a simple system design.

• Modified standards available.

Face Mills • Metric

order number catalogue number D1 D D4 D6 L Ap1 max Z Z ADJ kg max RPM

5363208

SF06306RH

63 22 — 60 40

6 6 0,45 20000

5363209

SF08008RH

80 27 — 77 50

8 8 0,63 20000

5363220

SF10012RH

100 32 — 97 50

6 12 12 1,13 17320

5363221

SF12515RH

125 40

— 122 63

6 15 15 2,30 15500

5363222

SF16018RH

160 40

— 157 63

6 18 18 3,20 14150

5363223

SF20024RH

200 60 102 197 63

6 24 24 4,21 12240

NOTE: Z = Number of cartridges.

Z ADJ = Number of adjustable cartridges.

Spare Parts

wedge

wrench size

adjusting

screw

wedge screw

screw

LS103

3 mm

SWSM515

LS103

3 mm

SWSM515

100

LS103

3 mm

SWSM515

125

LS103

3 mm

SWSM515

160

LS103

3 mm

SWSM515

200

LS103

3 mm

SWSM515

NOTE: Coolant cap or coolant shower plate must be ordered separately.

wrench size-

adjusting screw

4 mm

coolant

cap

SALS063

SALS080

SALS100

SALS125

SALS160

—

coolant

shower plate

—

SSP8

wedge

HDWM5EU4DD

H64
