WIDIA - Полный каталог инструмента - 2017
для размещения заказа - zakaz@widiahanita.ru

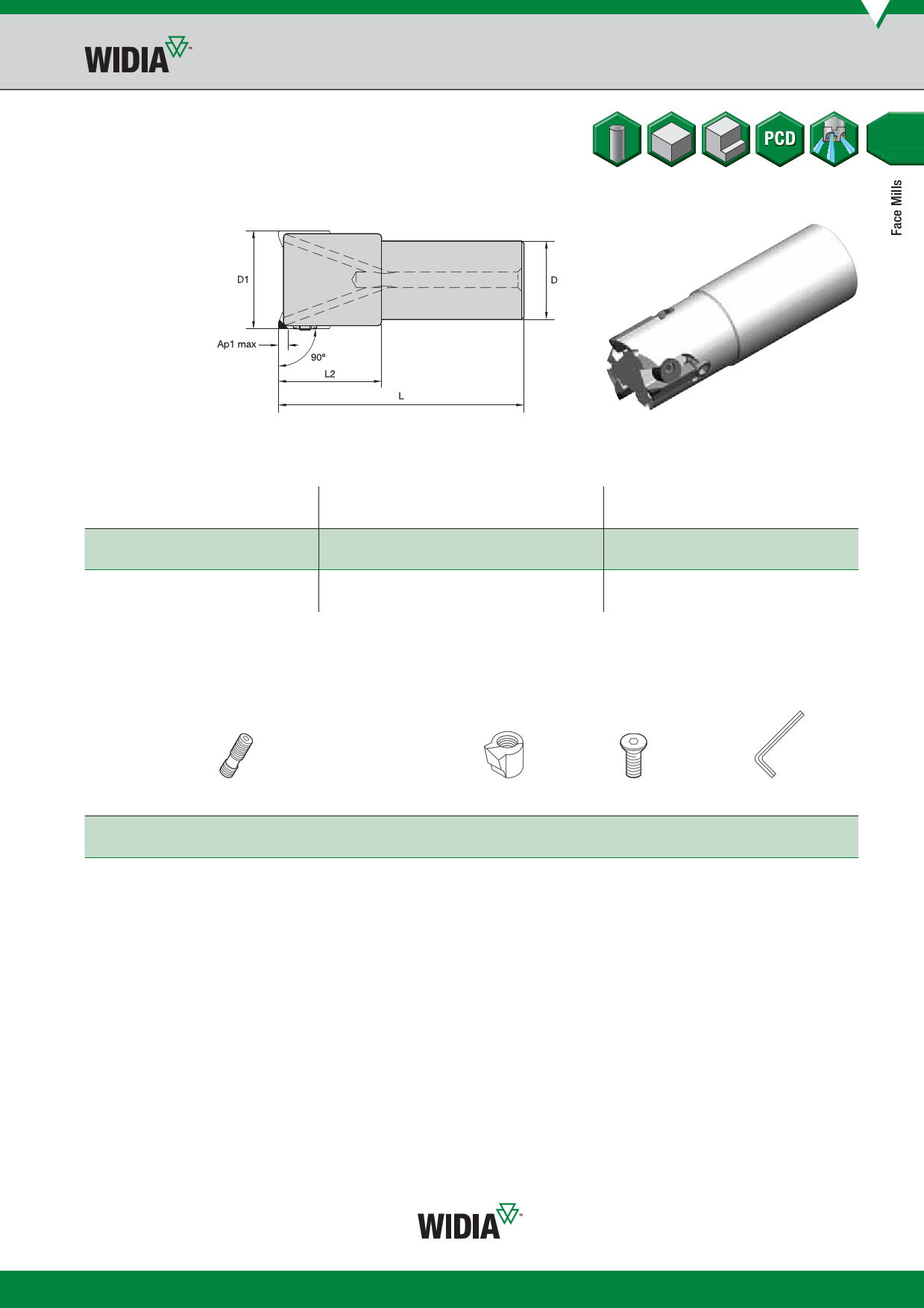

Face Mills • SuperFeed™ Series
Tool Bodies • End Mills
• Through coolant capability.
• +/- 3 micron axial adjustment range.
• Easy setup in a simple system design.
• Modified standards available.
End Mills • Metric
order number catalogue number D1 D L2 L Ap1 max Z Z ADJ kg max RPM
5363252
WSSEM02502RH
25 20 40 100
6,4
2 2 0,22 35800
5363253
WSSEM03203RH
32 32 42 100
6,4
3 3 0,54 31600
5363254
WSSEM04004RH
40 32 42 100
6,4
4 4 0,49 28300
5363255
WSSEM05005RH
50 32 42 100
6,4
5 5 0,79 25300
NOTE: Z = Number of cartridges.
Z ADJ = Number of adjustable cartridges.
Spare Parts
wedge
D1 screw
25 DSM550
32 DSM550
40 DSM550
50 DSM550
NOTE: For setting procedure, see page H68.
wrench size
wedge screw
3 mm
3 mm
3 mm
3 mm
wedge
HDWM5S
HDWM5S
HDWM5S
HDWM5S
adjusting
screw
SWSM5155
SWSM5155
SWSM5155
SWSM5155
wrench size-
adjusting screw
4 mm
4 mm
4 mm
4 mm
zakaz@widiahanita.ru
www.widiahanita.ru
H65
