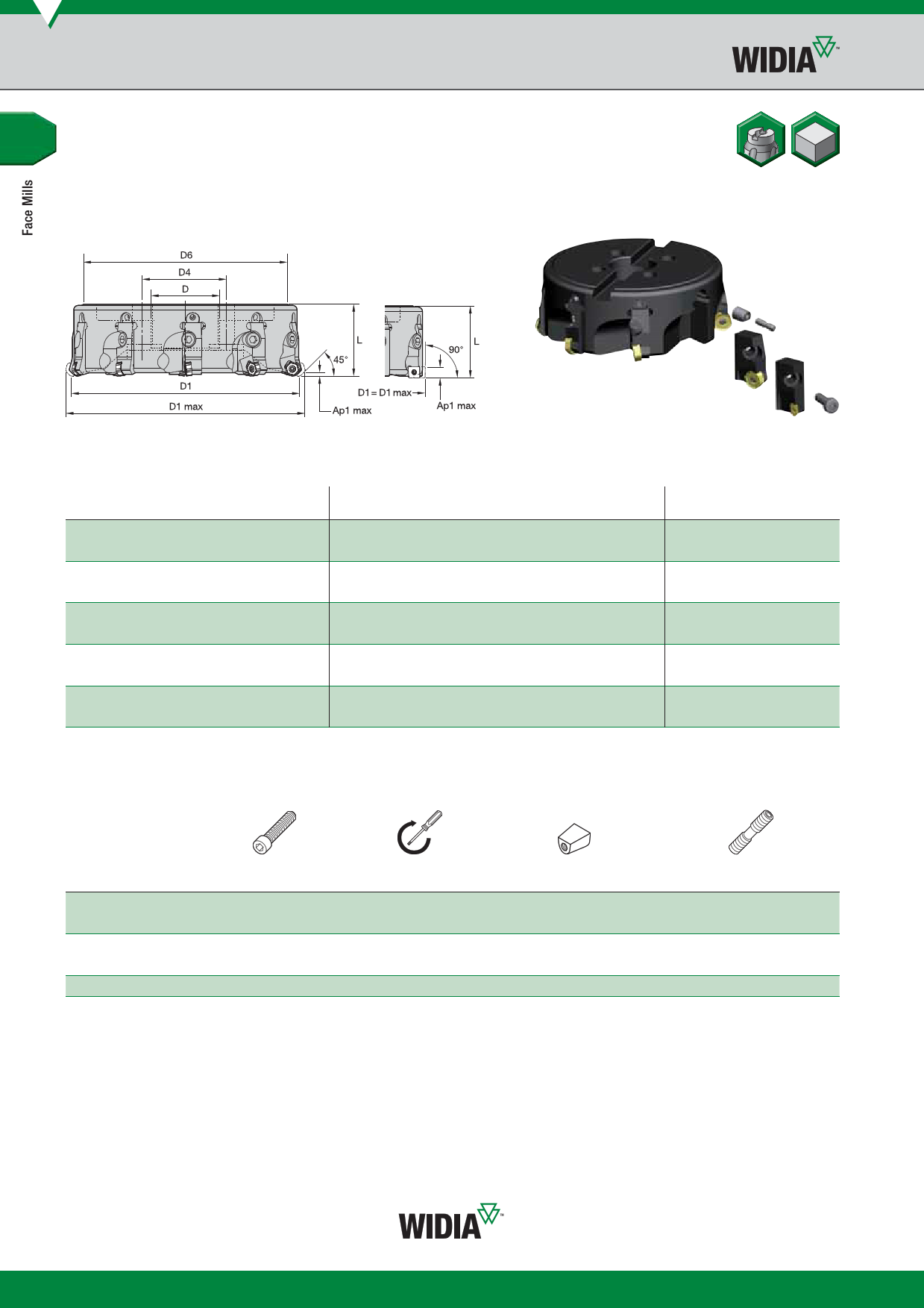

Face Mills • M4000 Series
Tool Bodies • Cartridge Milling System
для размещения заказа - zakaz@widiahanita.ru
• Roughing and finishing with a single tool.
• Quick cartridge stop feature.
• Easy runout adjustment.
• Easy change of cartridges with different
insert styles and lead angles.
Cartridge Milling System
number of
order number
catalogue number
D1
D
D4
D6
L
cartridges
kg
4136343
M4000D125Z06ADJ 125 40 — 108 68,0
6
3,34
4136344
M4000D125Z08ADJ 125 40 — 108 68,0
8
3,51
4136345
M4000D160Z08ADJ 160 40 66,7 137 63,0
8
5,19
4136346
M4000D160Z12ADJ 160 40 66,7 137 63,0
12
5,20
4136347
M4000D200Z10ADJ 200 60 101,6 178 63,0
10
8,02
4136348
M4000D200Z14ADJ 200 60 101,6 178 80,0
14
12,57
4136349
M4000D250Z12ADJ 250 60 101,6 228 63,0
12
13,53
4136350
M4000D250Z18ADJ 250 60 101,6 228 63,0
18
13,90
4136351
M4000D315Z16ADJ 315 60 101,6 293 80,0
16
25,08
4136352
M4000D315Z22ADJ 315 60 101,6 293 80,0
22
25,42
Spare Parts
cartridge
D1 screw Nm
wedge
adjusting
screw
125 MS1294 20,0 12748308500 12748600900
160 MS1294 20,0 12748308500 12748600900
200 MS1294 20,0 12748308500 12748600900
250 MS1294 20,0 12748308500 12748600900
315 MS1294 20,0 12748308500 12748600900
H72
