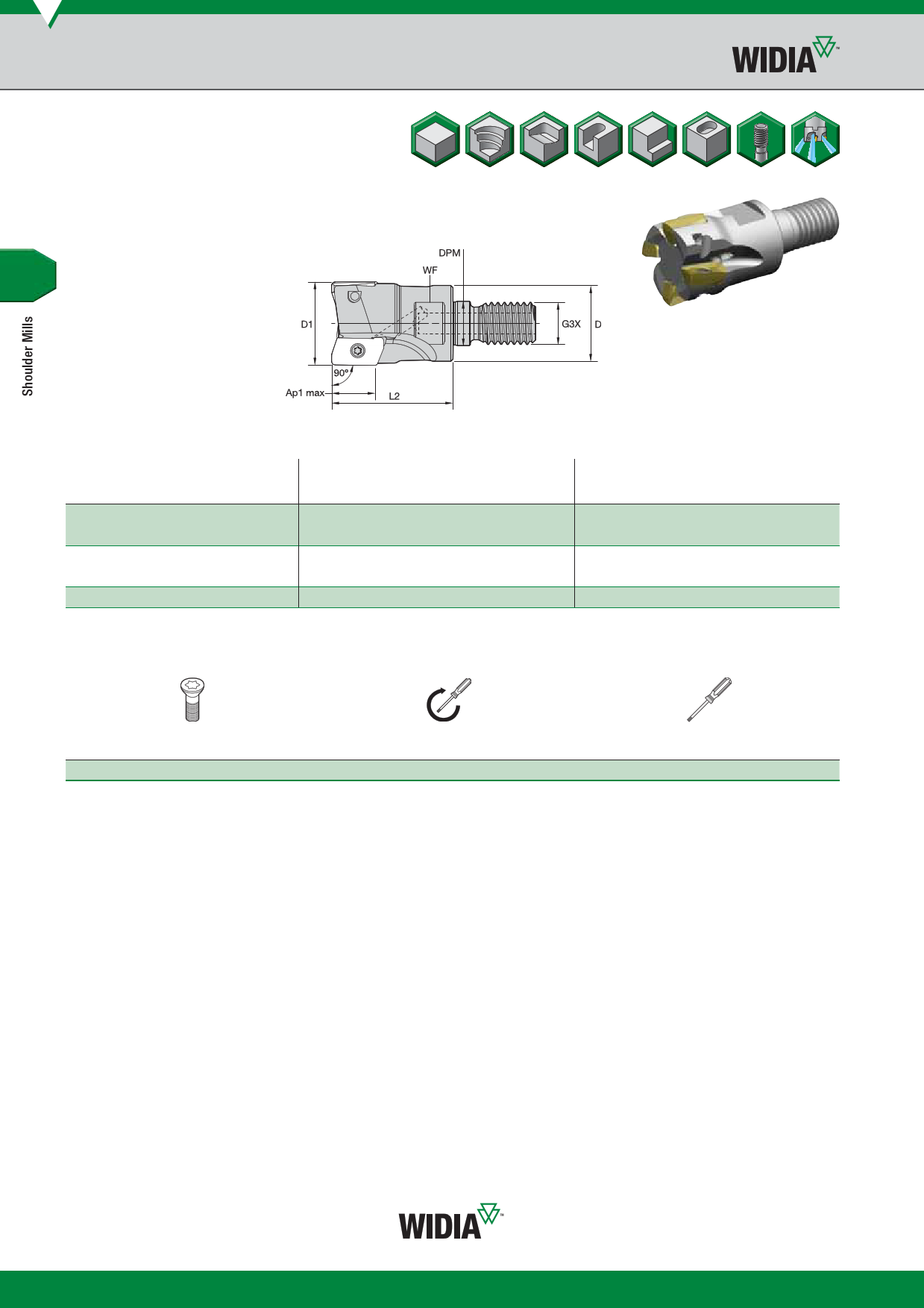

Victory™ Shoulder Mills • VSM11™ Series
Tool Bodies
• True 90° capability.
• Increased ramping capability.
• Superior wall and surface finish.
• Effective internal coolant feature,
precisely reaching the cutting edge.
Screw-On End Mills
order number
catalogue number
max coolant
D1 D DPM G3X L2 WF Ap1 max Z ramp angle supply max RPM kg
5417011 VSM11D016Z02M08XD11 16 13 8,5 M8 25 10 11,5 2
10.0°
Yes 41400 0,02
5417013 VSM11D020Z03M10XD11 20 18 10,5 M10 28 15 11,6 3
7.8°
Yes 35100 0,05
5417015 VSM11D025Z04M12XD11 25 21 12,5 M12 32 17 11,5 4
5.3°
Yes 30200 0,08
5417017 VSM11D032Z04M16XD11 32 29 17,0 M16 40 24 11,4 4
3.6°
Yes 25800 0,18
5417019 VSM11D040Z06M16XD11 40 29 17,0 M16 40 24 11,4 6
2.6°
Yes 22600 0,24
Spare Parts
insert
screw
192.432
Nm
1,0
NOTE: Standard milling cutters will accept insert nose radii up to 1,6mm without modication.
For tool body modication instructions, see page J16.
