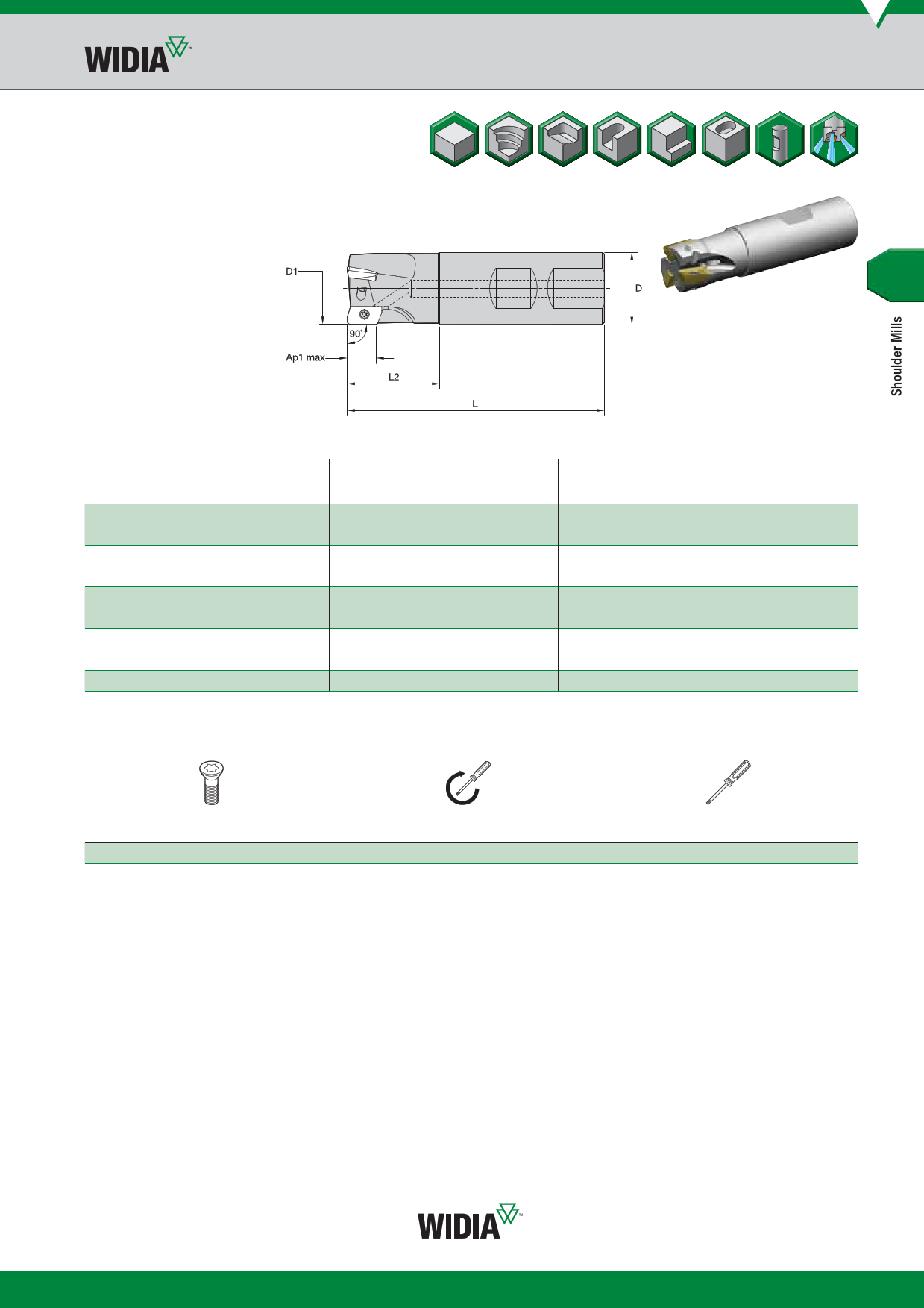

Victory™ Shoulder Mills • VSM11™ Series
Weldon® Shanks
• True 90° capability.
• Increased ramping capability.
• Superior wall and surface finish.
• Effective internal coolant feature,
precisely reaching the cutting edge.
Weldon Shanks
order number
catalogue number
D1 D
max coolant
L L2 Ap1 max Z ramp angle supply max RPM kg
5416454 VSM11D012Z01B16XD11 12 16 70 21 11,7 1
3.7°
Yes
53100
0,08
5416455 VSM11D016Z02B16XD11 16 16 70 21 11,5 2
10.0°
Yes
41400
0,09
5416457 VSM11D020Z02B20XD11 20 20 81 30 11,6 2
7.8°
Yes
35100
0,15
5416458 VSM11D020Z03B20XD11 20 20 81 30 11,6 3
7.8°
Yes
35100
0,16
5416459 VSM11D025Z03B25XD11 25 25 88 31 11,5 3
5.3°
Yes
30200
0,27
5416480 VSM11D025Z04B25XD11 25 25 88 31 11,5 4
5.3°
Yes
30200
0,28
5416481 VSM11D030Z04B25XD11 30 25 88 31 11,5 4
3.2°
Yes
26900
0,30
5416482 VSM11D032Z04B32XD11 32 32 100 39 11,4 4
3.6°
Yes
25800
0,51
5416483 VSM11D032Z05B32XD11 32 32 100 39 11,4 5
3.6°
Yes
25800
0,52
Spare Parts
insert
screw
192.432
Nm
1,0
NOTE: Standard milling cutters will accept insert nose radii up to 1,6mm without modication.
For tool body modication instructions, see page J16.
wrench
170.028
