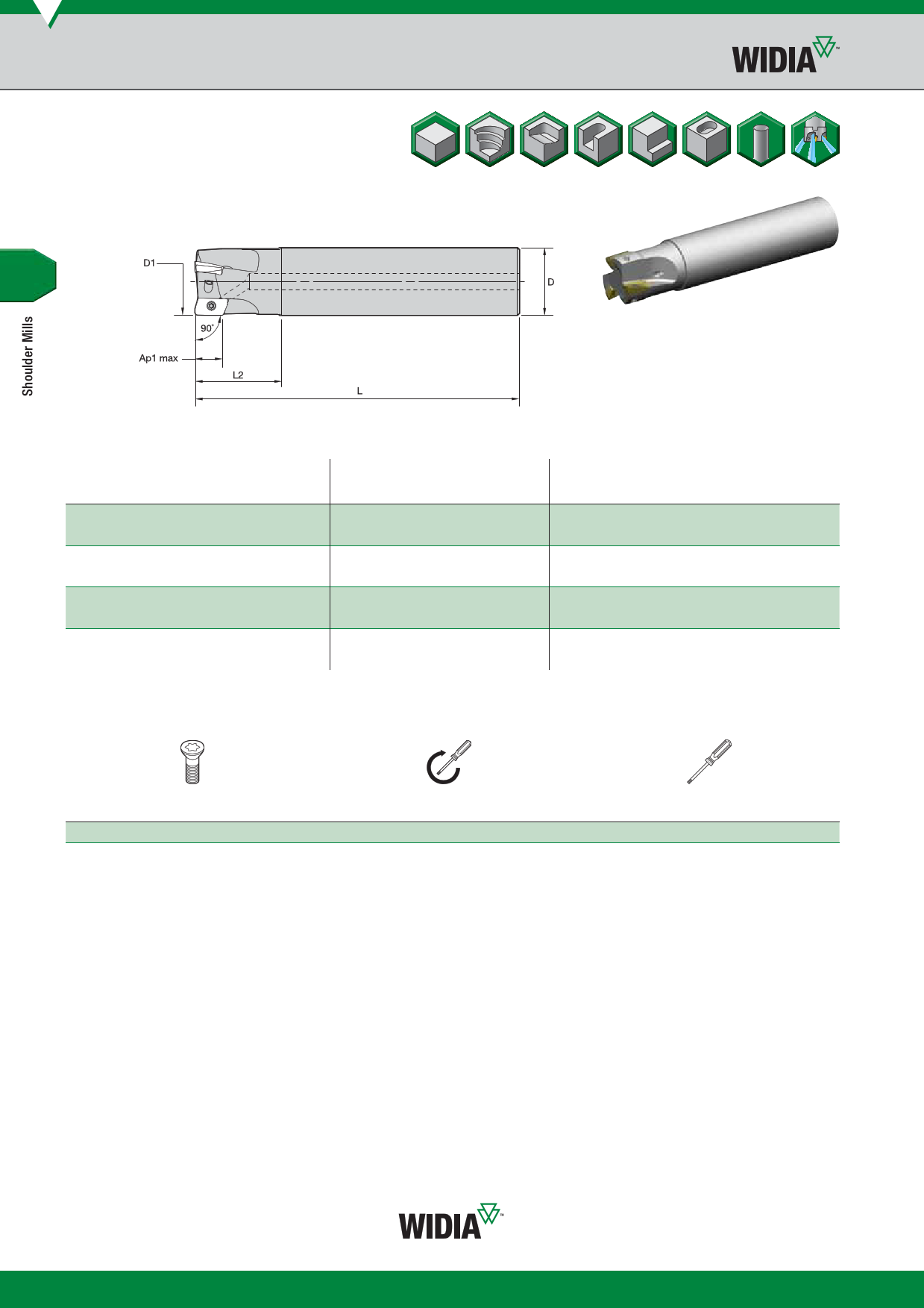

Victory™ Shoulder Mills • VSM11™ Series
Cylindrical End Mills
• True 90° capability.
• Increased ramping capability.
• Superior wall and surface finish.
• Effective internal coolant feature,
precisely reaching the cutting edge.
Cylindrical End Mills
order number
catalogue number
D1 D
max coolant
L L2 Ap1 max Z ramp angle supply max RPM kg
5416632
VSM11D012Z01A16XD11L100 12 16 100 25
11,7
1
3.7°
Yes
53100
0,13
5416633
VSM11D016Z02A16XD11L100 16 16 100 31
11,5
2
10.0°
Yes
41400
0,12
5416634
VSM11D020Z02A20XD11L110 20 20 110 31
11,6
2
7.8°
Yes
35100
0,22
5416635
VSM11D020Z03A20XD11L110 20 20 110 31
11,6
3
7.8°
Yes
35100
0,23
5416636 VSM11D025Z03A25XD11L120 25 25 120 33 11,5 3
5.3°
Yes
30200
0,39
5416637 VSM11D025Z04A25XD11L120 25 25 120 33 11,5 4
5.3°
Yes
30200
0,40
5416638 VSM11D032Z03A32XD11L130 32 32 130 41 11,4 3
3.6°
Yes
25800
0,70
5416639 VSM11D032Z05A32XD11L130 32 32 130 41 11,4 5
3.6°
Yes
25800
0,71
Spare Parts
insert
screw
192.432
Nm
1,0
NOTE: Standard milling cutters will accept insert nose radii up to 1,6mm without modication.
For tool body modication instructions, see page J16.
wrench
170.028
J6
