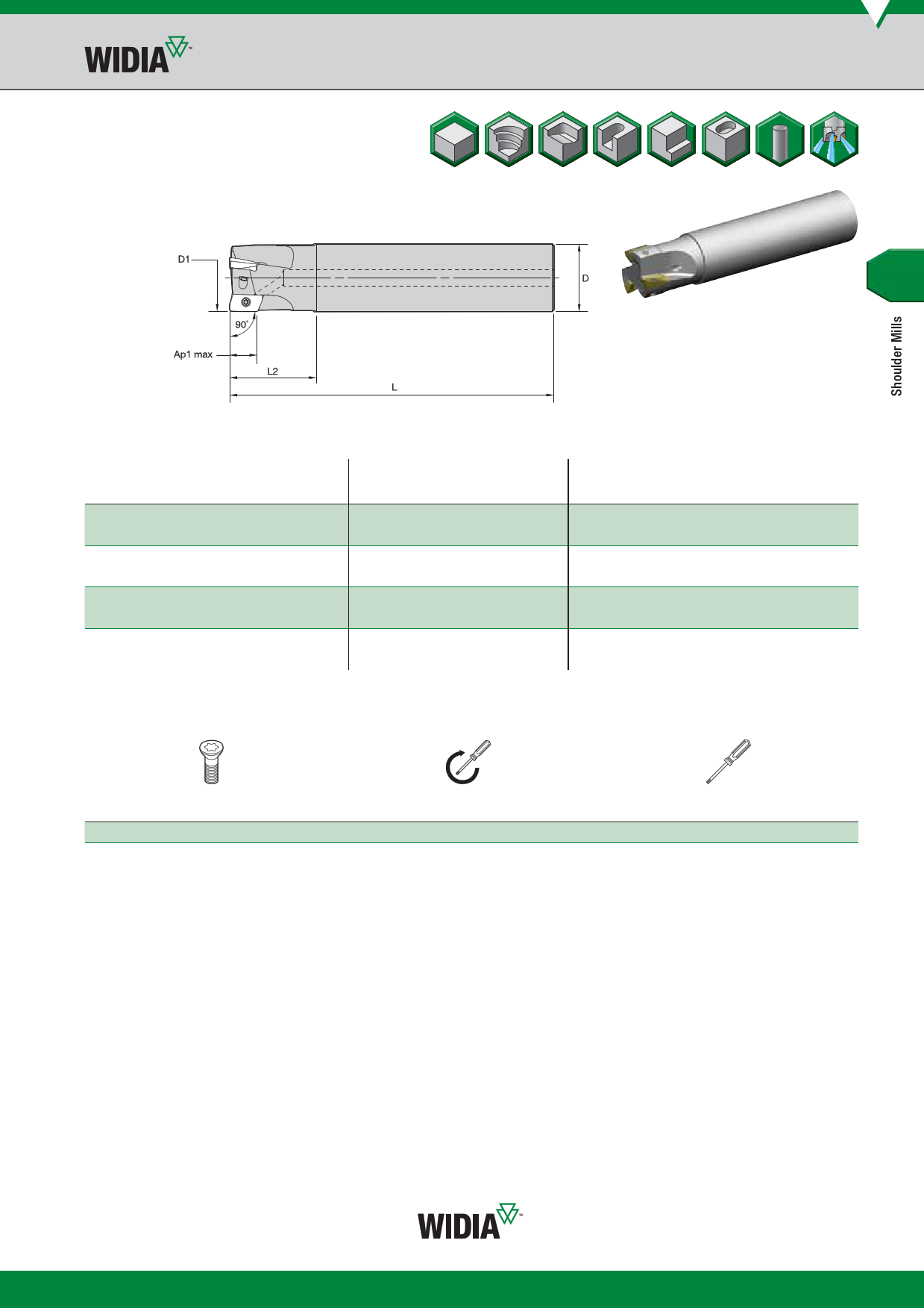

Victory™ Shoulder Mills • VSM11™ Series
Cylindrical End Mills • Long Shanks
• True 90° capability.
• Increased ramping capability.
• Superior wall and surface finish.
• Effective internal coolant feature,
precisely reaching the cutting edge.
Cylindrical End Mills • Long Shanks
order number
catalogue number
max coolant
D1 D L L2 Ap1 max Z ramp angle supply max RPM kg
5416700 VSM11D016Z02A16XD11L170 16 16 170 25 11,5 2
10.0°
Yes
41400
0,23
5416701 VSM11D018Z02A16XD11L170 18 16 170 25 11,6 2
9.7°
Yes
37900
0,23
5416702 VSM11D020Z02A20XD11L170 20 20 170 41 11,6 2
7.8°
Yes
35100
0,35
5416703 VSM11D020Z03A20XD11L170 20 20 170 41 11,6 3
7.8°
Yes
35100
0,36
5416704 VSM11D022Z03A20XD11L170 22 20 170 30 11,5 3
6.6°
Yes
32900
0,37
5416705 VSM11D025Z03A25XD11L210 25 25 210 50 11,5 3
5.3°
Yes
30200
0,70
5416706 VSM11D025Z04A25XD11L210 25 25 210 50 11,5 4
5.3°
Yes
30200
0,72
5416707 VSM11D032Z03A32XD11L250 32 32 250 65 11,4 3
3.6°
Yes
25800
1,39
Spare Parts
insert
screw
192.432
Nm
1,0
NOTE: Standard milling cutters will accept insert nose radii up to 1,6mm without modication.
For tool body modication instructions, see page J16.
wrench
170.028
