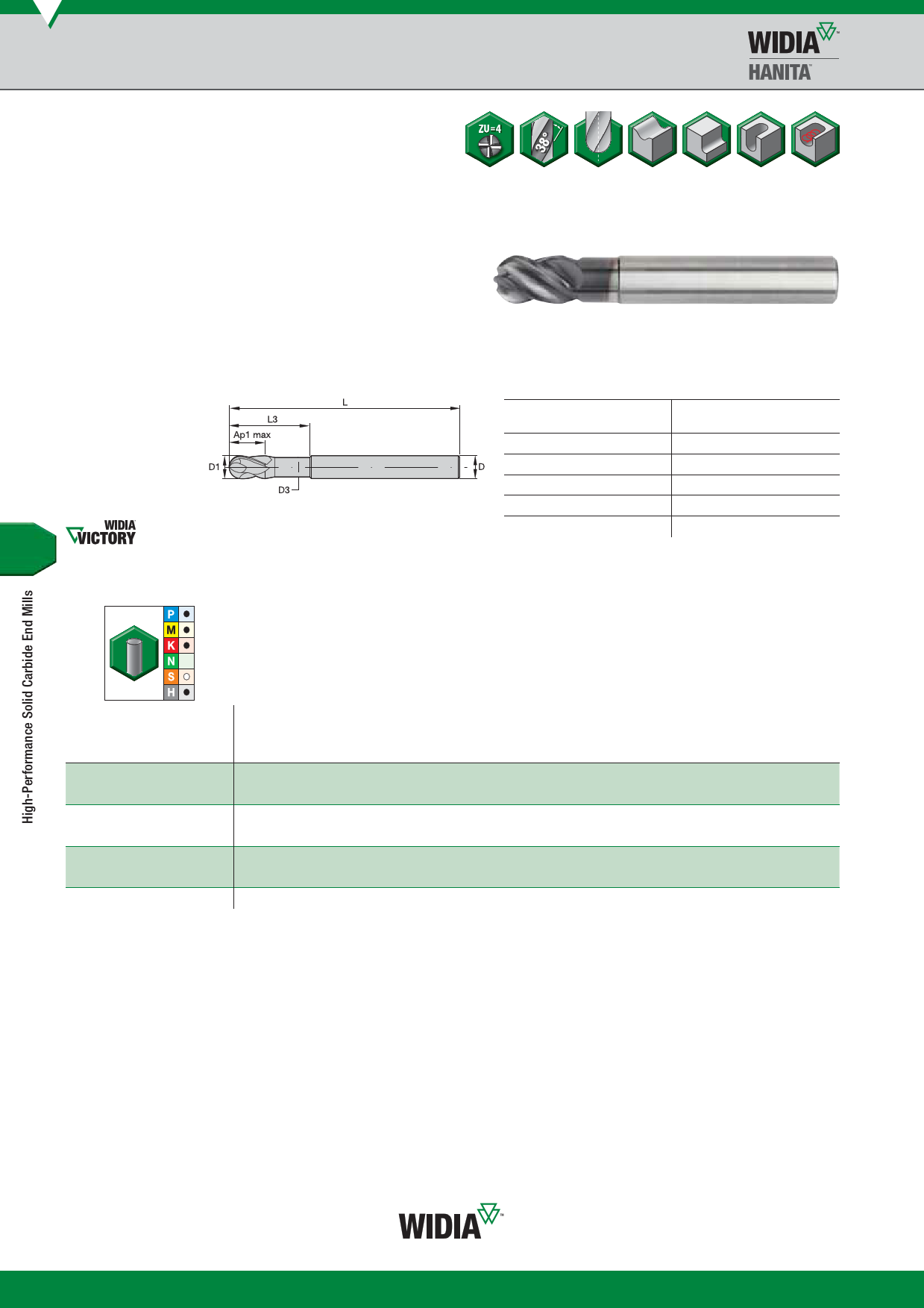

High-Performance Solid Carbide End Mills • VariMill™
Series 47N0 • VariMill I™ • Ball Nose • Victory™ Grades
• Unequal flute spacing.
• Centre cutting.
• Single tool for both roughing and finishing
operations requiring fewer setups.
• Standard items listed. Additional styles
and coatings made-to-order.
Series 47N0 • VariMill • Ball Nose • Victory Grades
D1
)3
> 3–6
> 6–10
> 10–18
> 18–30
End Mill Tolerances
tolerance e8
-0,014/-0,028
-0,020/-0,038
-0,025/-0,047
-0,032/-0,059
-0,040/-0,073
D
)3
> 3–6
> 6–10
> 10–18
> 18–30
tolerance h6
+/-
0/-0,006
0/-0,008
0/-0,009
0/-0,011
0/-0,013
graWdePW15PP1E5PE
AlTiN
order #
5576818
5576819
5576820
5576821
5576822
5576823
5576824
catalogue #
47N005002T
47N006002T
47N008003T
47N010004T
47N012005T
47N016006T
47N020007T
D1
5,0
6,0
8,0
10,0
12,0
16,0
20,0
first choice
alternate choice
length of cut
length
D D3 Ap1 max L3 L
6 4,70
9,00
15,00
57
6 5,64
10,00
15,00
57
8 7,52
12,00
20,00
63
10 9,40
14,00
25,00
72
12 11,28
16,00
30,00
83
16 15,04
22,00
38,00
92
20 18,80
26,00
50,00
104
O12
