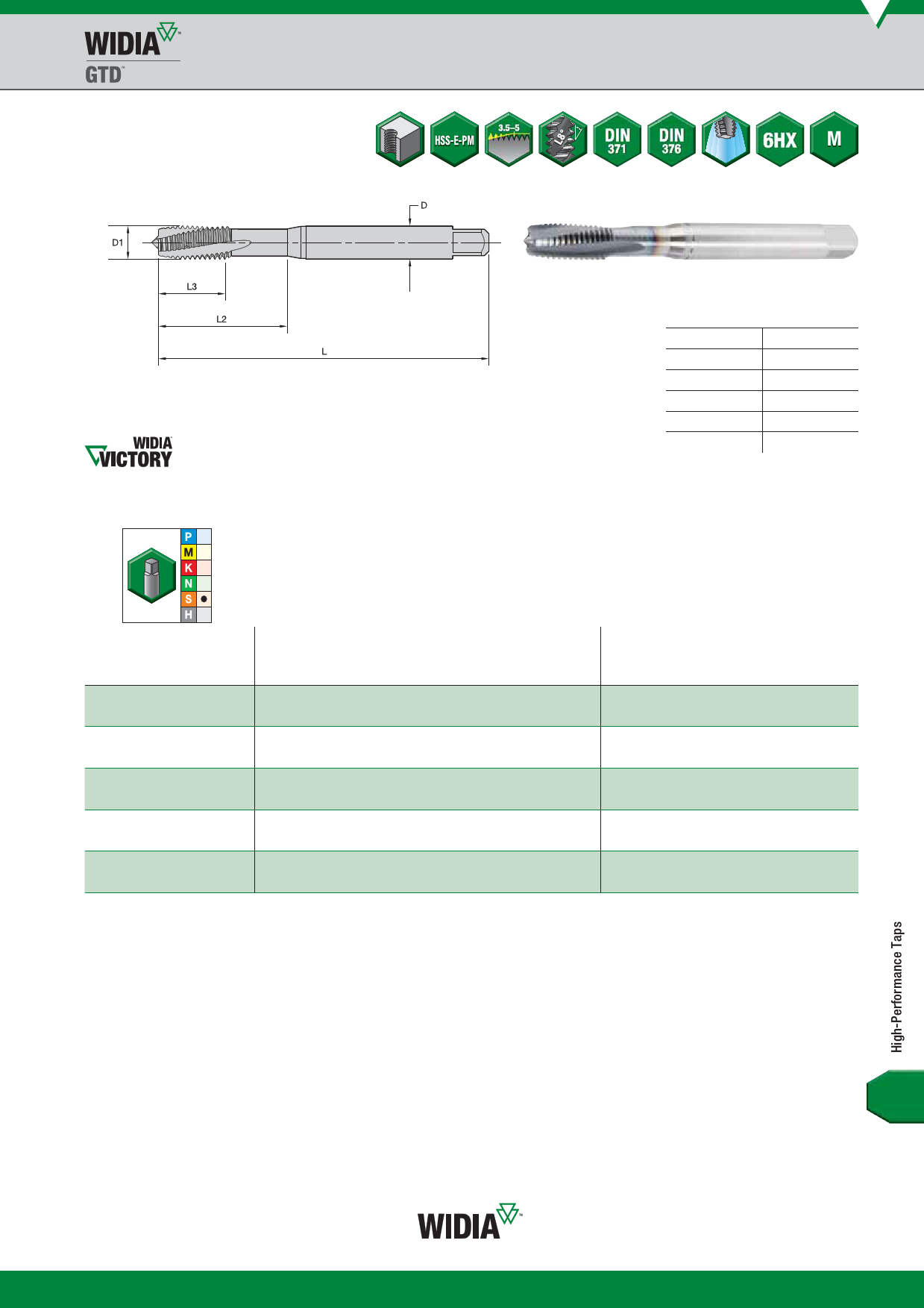

High-Performance Taps

Victory™ Left-Hand Spiral-Flute HSS-E-PM Taps • Through Holes

Shank Tolerance

D mm

tolerance h9

1–3 +0, -0,025

>3–6

+0, -0,030

>6–10

+0, -0,036

>10–18

+0, -0,043

>18–30

+0, -0,052

GT10 • Form D Plug Chamfer • Metric DIN 371 and 376 • For Nickel and Nickel Alloys

first choice

alternate choice

graWdeSW32SM3G2MG

TiCN

order # catalogue #

4160100 GT105001

4160101 GT105002

4160102 GT105003

4160103 GT105004

4160104 GT105005

4160105 GT105006

4160106 GT105007

4160107 GT105008

4160108 GT105009

4160109 GT105010

D1 size

M3 X 0,5

M4 X 0,7

M5 X 0,8

M6 X 1

M8 X 1,25

M10 X 1,5

M12 X 1,75

M14 X 2

M16 X 2

M20 X 2,5

metric dimensions

L L3 L2 D

56 11 18 3,5

63 13 21 4,5

70 15 25 6,0

80 17 30 6,0

90 20 35 8,0

100 22 39 10,0

110 24 — 9,0

110 26 — 11,0

110 27 — 12,0

140 32 — 16,0

number

of utes

dimension

standard

DIN 371

DIN 376

class

of t

6HX
