High-Performance Taps

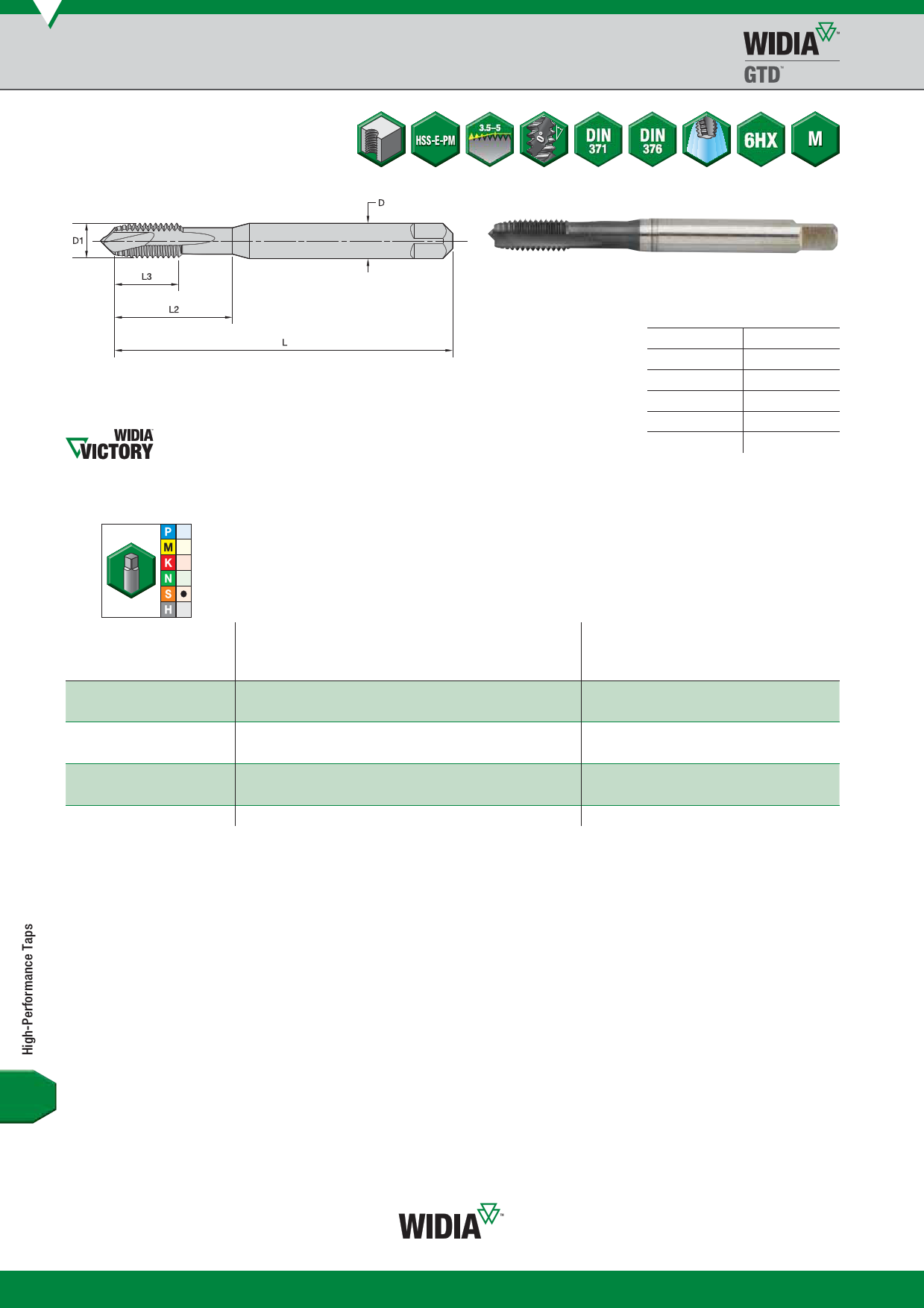

Victory™ Spiral-Point Plug HSS-E-PM Taps • Through Holes

• WN35MG TiN/DLC for titanium

and titanium alloys.

Shank Tolerance

D mm

tolerance h9

1–3 +0, -0,025

>3–6 +0, -0,030

>6–10

+0, -0,036

>10–18

+0, -0,043

>18–30

+0, -0,052

GT14 • Form B Plug Chamfer • Metric DIN 371 and 376 • For Titanium and Titanium Alloys

first choice

alternate choice

graWdeNW35NM3G5MG

TiN/DLC

order # catalogue #

4160093 GT145001

4160094 GT145002

4160095 GT145003

4160096 GT145004

4160097 GT145005

4160098 GT145006

4160099 GT145007

D1 size

M3 X 0,5

M4 X 0,7

M5 X 0,8

M6 X 1

M8 X 1,25

M10 X 1,5

M12 X 1,75

metric dimensions

L L3 L2 D

56 11 18 3,5

63 13 21 4,5

70 15 25 6,0

80 17 30 6,0

90 20 35 8,0

100 22 39 10,0

110 24 —

9,0

number

of utes

dimension

standard

DIN 371

DIN 376

class

of t

6HX
