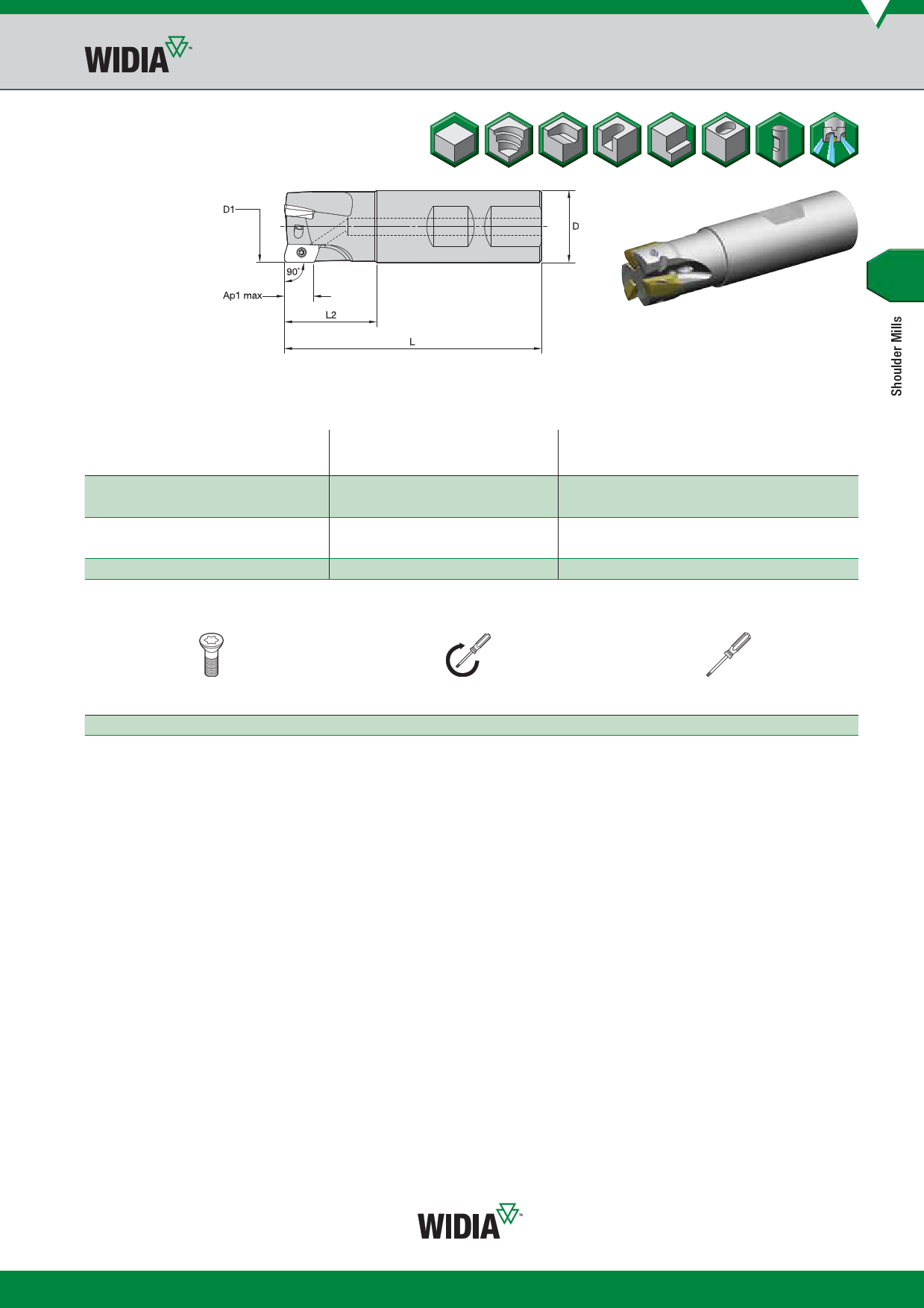

Victory™ Shoulder Mills • VSM17™ Series
Weldon® Shanks
Weldon Shanks
order number
catalogue number
D1 D
L L2 Ap1 max Z
5988102 VSM17D025Z02B25XD17 25 25 90 33 16,3 2
5988136 VSM17D032Z02B32XD17 32 32 100 39 16,3 2
5988103 VSM17D032Z03B32XD17 32 32 100 39 16,3 3
5988137 VSM17D040Z03B40XD17 40 40 110 39 16,2 3
5988104 VSM17D040Z04B40XD17 40 40 110 39 16,2 4
Spare Parts
max
ramp
angle
8.8
5.7
5.7
4.0
4.0
coolant
supply
Yes
Yes
Yes
Yes
Yes
max RPM
41800
34700
34700
29800
29800
kg
0,26
0,49
0,48
0,88
0,87
insert
screw
Nm
191.725
3,5
NOTE: Standard milling cutters will accept insert nose radii up to 1,6mm without modication.
For tool body modication instructions, see page J16.
wrench
170.025
